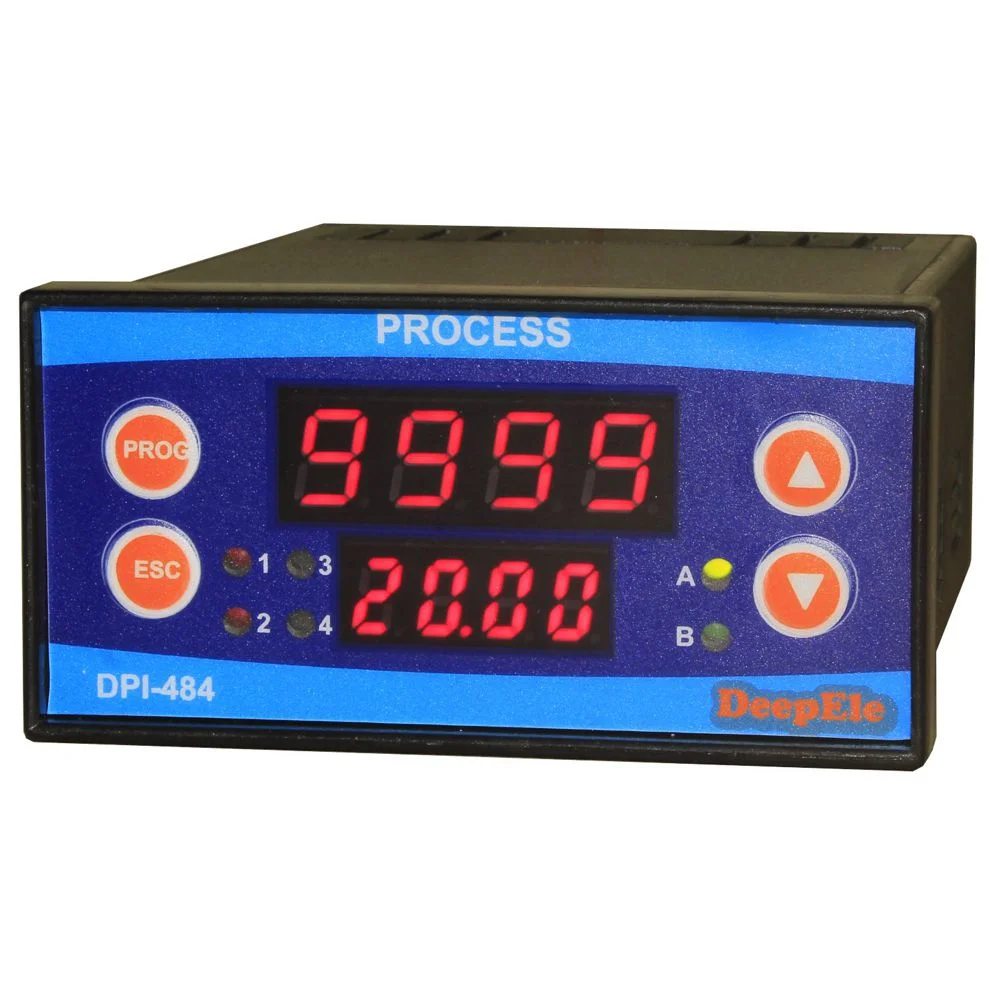

DPI-484

 SPECIFICATIONS

• Design: Microcontroller based design.
• Supply: 90-250 VAC.
• Input: (-15 to +15) VDC.
• Range: -1999 – 9999 with high scale and low scale setting.
• Accuracy: Better than +/- 0.1 %.
• User Control: 4 front panel tactile switches for calibration and Parameter setting.
• Calibration: Fully Digital Calibration through front keyboard.
• Fault Indication: Over Range and Under Range fault indication on display.
• Size: 48mm X 96mm X 110mm.
• Panel Cut out Size: 46mm X 91mm.
• Enclosure: ABS Plastic Panel Mounting with IP65 Front.
• Mounting: Panel mounting.

 KEY FEATURES

High scale and Low scale setting facility.
Decimal point adjustment.
Offset Adjustment to match display reading with other devices.
Lower Display shows Value in %.
